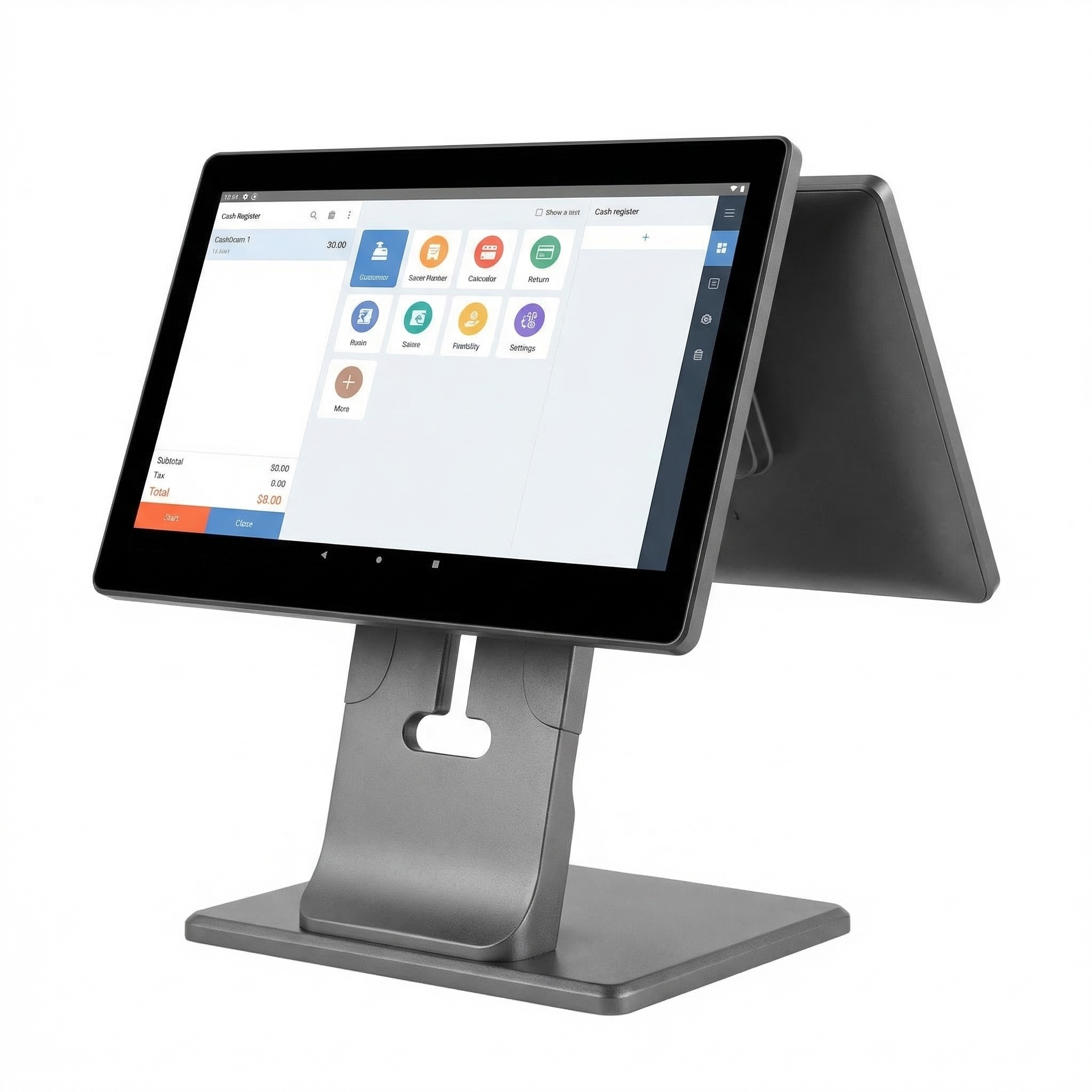

The OA-80 is a 15.6" all-in-one touch POS system built around a slim aluminum body with a refined metallic texture—durable for daily retail and hospitality use, yet premium in look. Its ultra-narrow bezel display delivers an outstanding, edge-to-edge visual experience that keeps the focus on your interface. Smart, small-size packaging reduces shipping volume by up to 70%, lowering logistics cost for overseas distributorsobal distributors. Optional Windows or Android to match your software stack.
Get a personalized quote with volume pricing, lead times, and OEM/ODM options.
|
Description
|
15.6 inch Aluminum Metal POS
|
|
Design
|
Slim type , can Foldable
|
|
Showing angle
|
Can make in Vertical type showing
|
|
CPU
|
Intel core i 5 Indurstry Motherboard
|
|
3.7 Ghz max
|
|
|
DDR3 1333/1600
|
|
|
Intel VT-x
|
|
|
Turbo BoostSupport
|
|
|
Intel HD Graphics 4600
|
|
|
Menory
|
8G /32 G max
|
|
Storage
|
128G or Higher
|
|
Expansion Slots
|
1 * MiniPCI-E connector
|
|
|
1* PCIex1 slot
|
|
Storage
|
1 * Serial ATA3 6Gb/s connector
|
|
1* Serial ATA2 3Gb/s connector
|
|
|
1 * M-SATA Connector
|
|
|
ALC887 Audio CODEC
|
|
|
HD Audio CODEC
|
|
|
Realtek®RTL8111F Chip
|
|
|
|
PCI Express Gigabit LAN
|
|
|
Support Fast Ethernet Lan Function of providing 10/100/1000 Mbps Ethernet data transfer rate
|
|
LVDS
|
Onboard 24-bit Dual channel
|
|
Internal I / O
|
1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports
2*CPU / Chassis Fan connectors 4*COM headers 1*Parallel header 1 *4-pin ATX 12V Power connector 1 *4-pin SATA Power connector 1 *15-pin VGA header 1 *24-bit Dual Channel LVDS header 1 *GPIO header 1 *Mini PCI-e connector 1 * M-SATA Connector 1 * Audio header 1 * Front panel audio header |
|
BIOS
|
AMI 32MB DIP Flash ROM
|
|
Form Factor
|
Thin mini ITX Form Factor(170mm X 170mm)
|
|
OS
|
Win 10 Pre-installed
|
|
Video Memory
|
Max Support 224MB Dynamic Video Memory
|
|
SSD
|
128 G or higher
|
|
Customer display
|
LCD 2 lines customer display or 9.7 " 11.6 " /13.3"/15 " screen optional
|
|
LCD
|
15.6inch Touch LCD
|
|
Brightness
|
250cd/m2
|
|
Resolution
|
1366x 768(max)
|
|
Touch Screen
|
Capacitive touch screen
|
|
Visible Angle
|
Horizontal: 140, Vertical: 130
|
|
Operation Temperature
|
0°C to 40°C
|
|
Storage Temperature
|
-20°C to 40°C
|
|
Weight
|
4.5 KG
|
|
Size
|
46x37x13 cm
|
|
Power
|
DC 12V Outer Adapter Input
|
Q1: Are you a factory or a trader? and How long is quality warranty period?
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.
We offer 24 months long term quality warranty.
