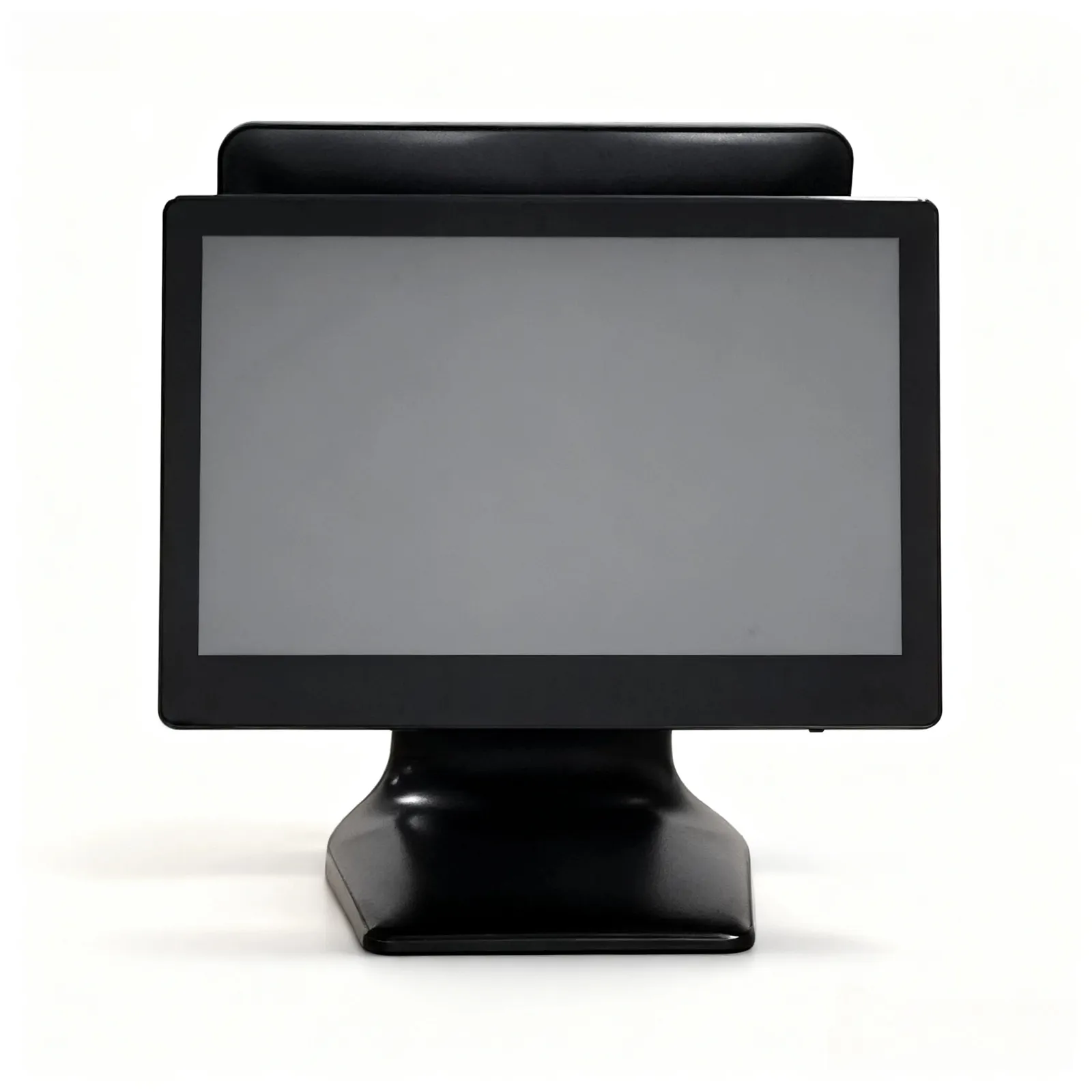

The OA-90SDS is a 15.6" arc-touch POS terminal with an optional detachable secondary screen for customer-facing display. Built for stable and reliable performance, it suits busy retail and supermarket counters. From our own factory with OEM/ODM support.
Get a personalized quote with volume pricing, lead times, and OEM/ODM options.
| Screen size | 15.6 inch | |
| CPU | Intel i5, up to 4.1 GHz | |
| Display Output | Supports asynchronous dual display (VGA/LVDS/HDMI) | |
| Graphics card | Integrated Intel HD graphics card, supports DX9C | |
| Input/output controller | ITE IT8786E | |
| Memory | 8G /16G RAM , Support DDR4 2666MHz | |
| Single memory stick supports up to 16GB | ||
| Storage | 128G SSD /512 SSD 2*SATA 1*NGFF-B(for SSD) | |
| Resolution | Resolution min. FHD, 16:9 | |
| Screen angle adjust | Possibility to adjust the height and tilt of the screen | |
| Extrenal connect port | connect a mouse and keyboard | |
| Install | Possibility of mounting on a Vesa support | |
| Optional parts | Built-in at least two 3-5W speakers | |
| Built-in microphone | ||
| Built-in camera | ||
| Bluetooth 5.1 | ||
| WiFi | ||
| Expansion slot | 1x MPCIE slot | |
| 1x MSATA slot | ||
| Audio | Realtek ALC897, supports Line-Out&Line-In | |
| Ethernet Lan | 2x ETH 10/100/1000 Gb/s | |
| USB | 4*USB2.0 6*USB3.0 | |
| COM | 4*COM pins (2*COM standard) | |
| Internal I/O | 3 x USB pins | |
| 6 x COM pins | ||
| 1 x 25 pin PRINT pin | ||
| 1 x EDP pin/LVDS pin | ||
| 1 x 4Pin SPEAKER pin | ||
| 1 x 9Pin built-in audio interface (F_AUDIO) | ||
| 1 x VGA display interface | ||
| 1 x HDMI display interface | ||
| 4 x USB3.0 interface | ||
| 1 x Line Out audio interface | ||
| 1 x LAN interface | ||
| 1 x DCIN power interface | ||
| BIOS | AMI BIOS | |
| Power supply | 12V DC power supply (with a dedicated 230VAC/12VDC power supply) | |
| Cooling system | Passive cooling system | |
| Temperature | Operating temperature: -20ºC~75ºC | |
| Environmental humidity: -15%~60% | ||
| Operating system | Windows 10/Windows 11 pro 64 bit | |
| POS working Area | POS Monitor can be used with dispatch application - medical, energetic, transport, fire department,other | |
Q1: Are you a factory or a trader? and How long is quality warranty period?
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.
We offer 24 months long term quality warranty.
